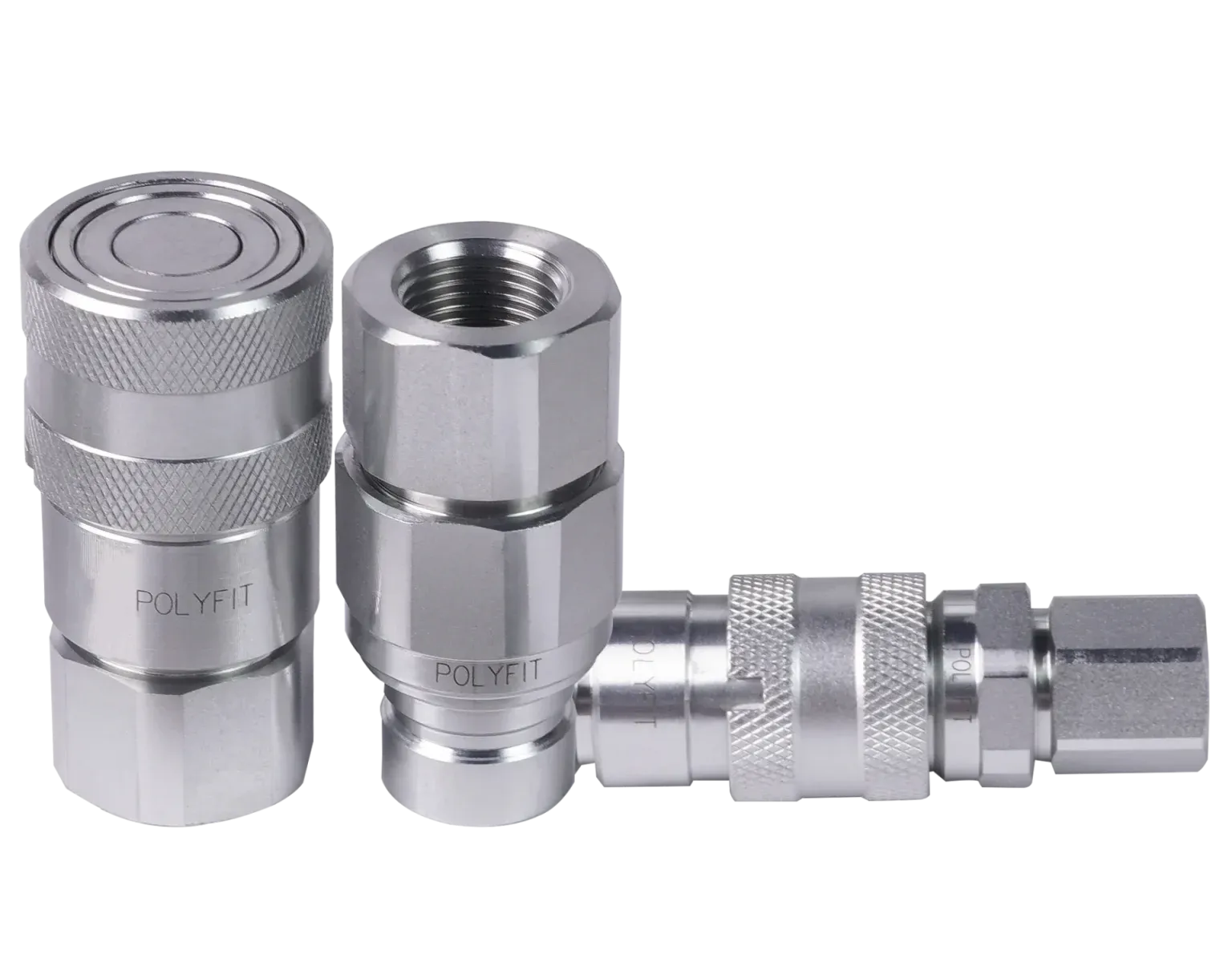

FLAT TYPE
These couplings are also used for quick change of hydraulic tools in construction, railway maintenance over bucket hoist and mining industries.
SPECIFICATIONS
Body Size(in)(BSP) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|
Rated Pressure(bar) | 345 | 300 | 300 | 250 | 210 |
Rated Flow(LPM) | 11 | 22 | 45 | 105 | 189 |
Temperature Range(Std seals) | -20 to +120 C | ||||
Standard Seal Material is | NBR |
FEATURES
- Sleeve locking mechanism is engaged by rotating sleeve after connection.
- Steel construction new chrome plating treatment provides advanced anti-rust performance
- Durable ball-locking mechanism assures reliable connections, every time.
- This series conforms to standard of ISO 16028.
