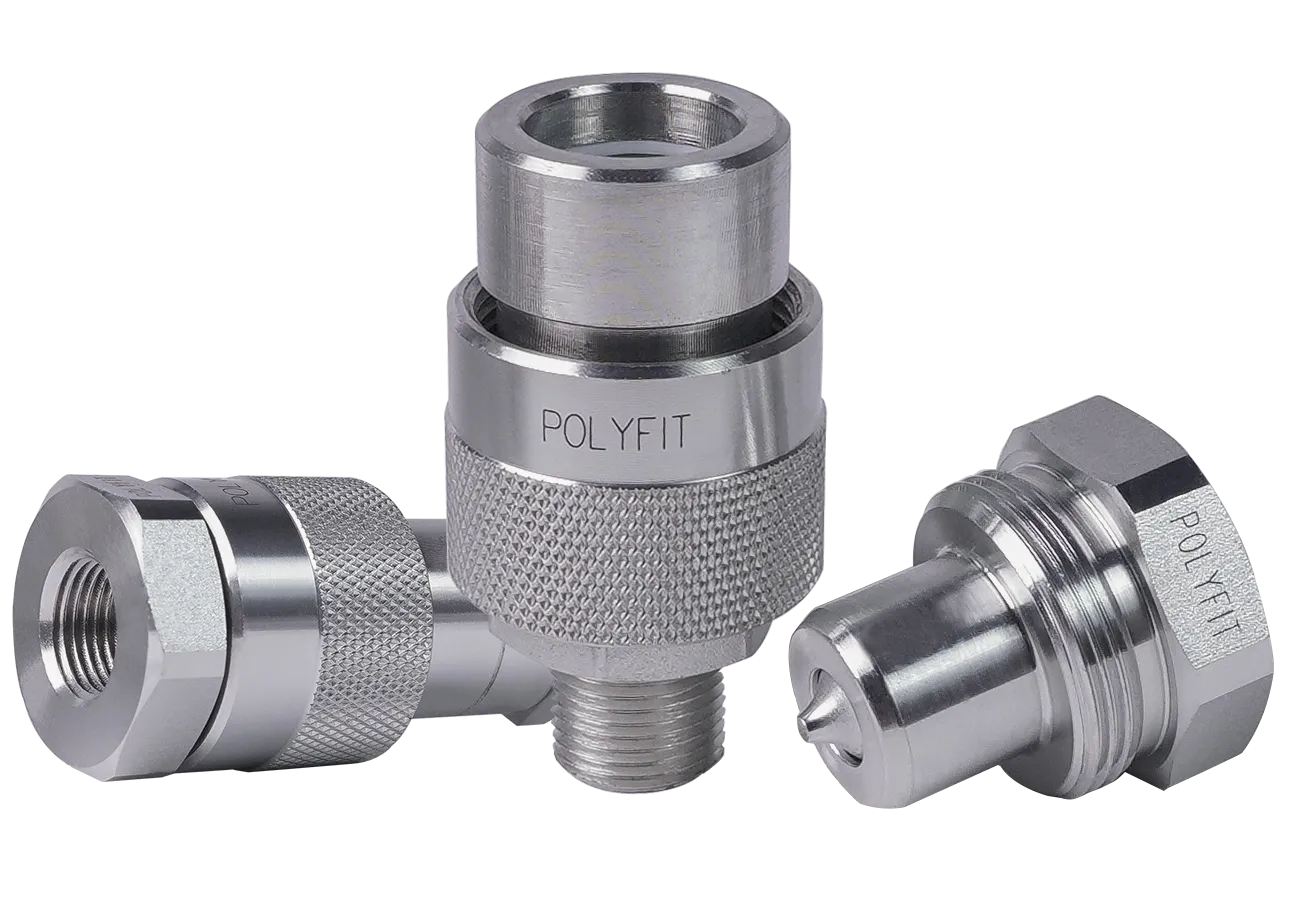

POPPET TYPE-THREADED
Full specifications for POPPET TYPE-THREADED are available on request — contact us for the datasheet, or add it to your quote list.
SPECIFICATIONS
Body Size(in)(NPT) | 3/8 |
|---|---|
Rated Pressure(bar) | 700 |
Rated Flow(LPM) | 22 |
Temperature Range(Std seals) | -20 to +120 C |
Standard Seal Material is | NBR |
FEATURES
- This series employs a threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manual
- Hard chrome alloy balls are used for valving. They are spring loaded for positive seating for the valve.
- The valve provides a metal to metal seal between the ball and coined seat.
- The interface seal is polyurethane which resists high pressure extrusion.
