PF-43-FJ-SS-ONE PIECE DOUBLE HEXAGONAL JIC 37º FEMALE SWIVEL STRAIGHT FITTING

PF-43-FJ-SS

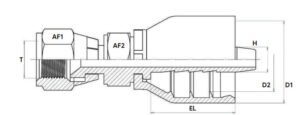

POLYFIT PART.NO	H	T	AF1	AF2	EL	D1	D2	PARKER PART.NO	DICSA PART.NO	OMEGA PART.NO
PF43-04-04-FJ-SS	1/4"	7/16" -20h UNF	14	14	22.5	23	16.9	10643-04-04	882420704	H-43-FJX-04-04
PF43-04-06-FJ-SS	1/4"	9/16" -18h UNF	19	17	22.5	23	16.9	10643-04-06	882420904	H-43-FJX-04-06
PF43-06-06-FJ-SS	3/8"	9/16" -18h UNF	19	19	24.5	28	20.7	10643-06-06	882420906	H-43-FJX-06-06
PF43-06-08-FJ-SS	3/8"	3/4" -16h UNF	24	19	24.5	28	20.7	10643-06-08	882421206	H-43-FJX-06-08
PF43-08-08-FJ-SS	1/2"	3/4" -16h UNF	24	22	26.7	32	24.8	10643-08-08	882421208	H-43-FJX-08-08
PF43-08-10-FJ-SS	1/2"	7/8" -14h UNF	27	22	26.7	32	24.8	10643-08-10	882421408	H-43-FJX-08-10
PF43-10-10-FJ-SS	5/8"	7/8" -14h UNF	32	27	30.2	35	27.8	10643-10-10	882421410	H-43-FJX-10-10
PF43-12-12-FJ-SS	3/4"	1.1/16" -12h UNF	32	27	35.5	40	32	10643-12-12	882421712	H-43-FJX-12-12
PF43-12-16-FJ-SS	3/4"	1.5/16" -12h UNF	41	32	35.5	40	32	10643-12-16	882422112	H-43-FJX-12-16
PF43-16-16-FJ-SS	1"	1.5/16" -12h UNF	41	32	42	47	39	10643-16-16	882422116	H-43-FJX-16-16

Note:

Additional sizes available on request.
This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
General tolerance is applicable.
