PH663-AIR&WATER DISCHARGE HOSE FRAS-20BAR

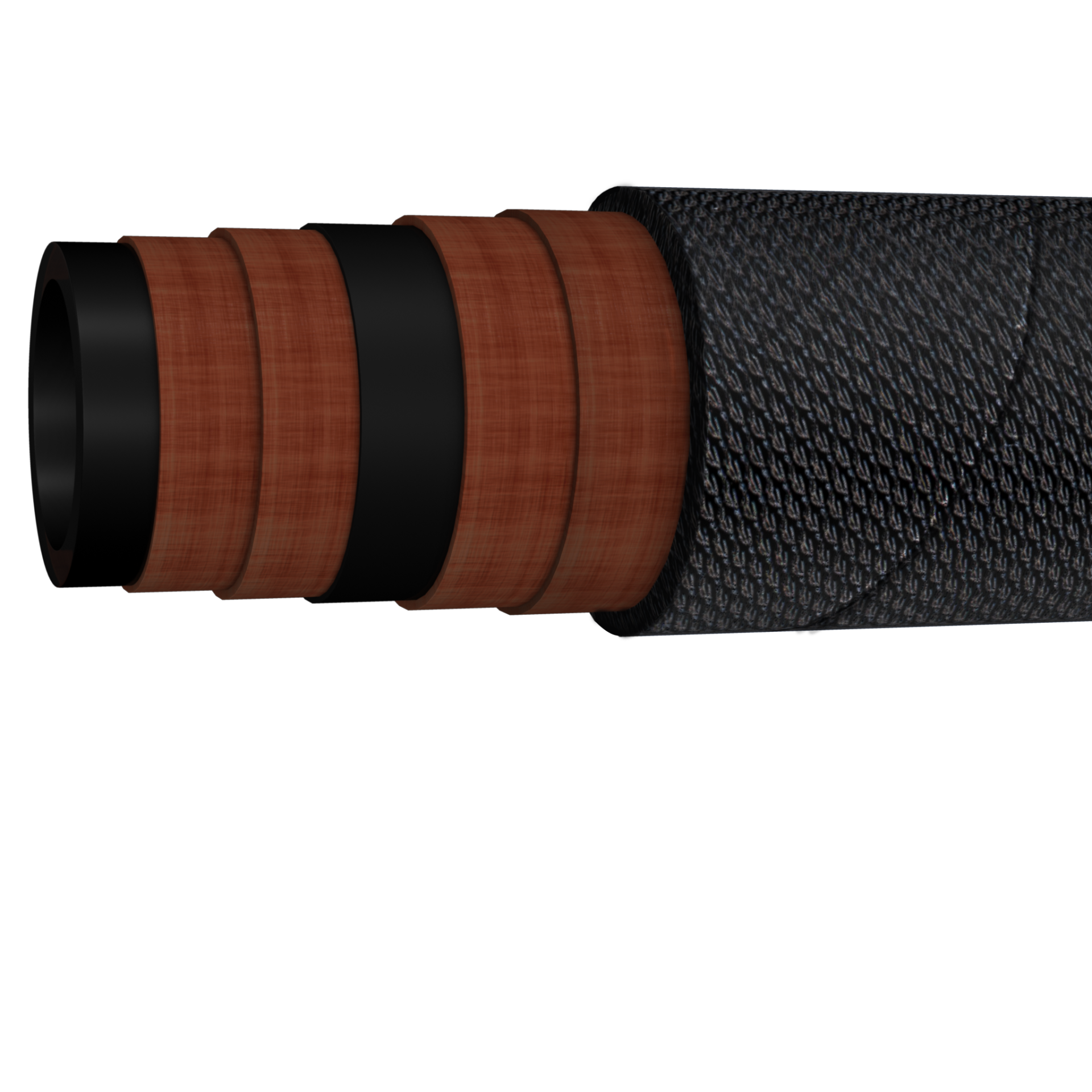

Construction


Inner tube	Black colour, Conductive synthetic rubber resistant to air and water
Reinforcement	Piles of synthetic textile cord
Cover	Black colour, Conductive Synthetic rubber resistant to air and water
Application	Hose designed for Air, water & stone dust delivery in underground mines

Item Code	Dash Size	ID		OD		WP		BP		W
		inch	mm	inch	mm	psi	bar	psi	bar	kg/m
PH 645-16	-16	1	25.0	1.34	34.0	300	20	900	60	0.53
PH 645-20	-20	1.1/4	32.0	1.65	42.0	300	20	900	60	0.84
PH 645-24	-24	1.1/2	38.0	1.89	48.0	300	20	900	60	0.98
PH 645-32	-32	2	51.0	2.44	62.0	300	20	900	60	1.10
PH 645-40	-40	2.1/2	63.0	2.99	76.0	300	20	900	60	1.50
PH 645-48	-40	3	76.0	3.50	89.0	300	20	900	60	1.72
PH 645-56	-56	3.1/2	89.0	4.06	103.0	300	20	900	60	2.10
PH 645-64	-64	4	102.0	4.57	116.0	300	20	900	60	2.40
PH 645-80	-80	5	127.0	5.59	142.0	300	20	900	60	3.00
PH 645-96	-92	6	152.0	6.57	167.0	300	20	900	60	5.00
PH 645-128	-128	8	203.0	8.62	219.0	300	20	900	60	7.20



Temperature Range	Continuous: -20°C to 85°C
