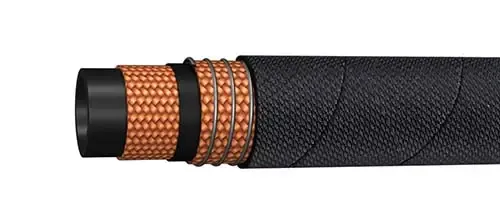

PH185 - HYDRAULIC OIL S & D HOSE HIGH TEMPERATURE MSHA
Applicable Standard : SAE J517 – 100R4
Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil |
|||
|
Reinforcement |
Synthetic Yarn fabric with Steel Wire Helix |
|||
|
Cover |
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. |
|||
|
Application |
For suction return line of Hydraulic Oil in Industrial and Earthmoving Equipment |
|||
Note : 1.3/4″not covered under SAE 100R4
| Item Code | Dash Size | DN |  ID |  OD |  WP |  BP |  BR/r |  W |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH185-12 | -12 | 19 | 3/4 | 19.0 | 1.14 | 29.0 | 365 | 25 | 1235 | 85 | 1.57 | 40 | 0.638 |
| PH185-16 | -16 | 25 | 1 | 25.0 | 1.38 | 35.0 | 290 | 20 | 1015 | 70 | 1.77 | 45 | 0.883 |
| PH185-20 | -20 | 31 | 1.1/4 | 32.0 | 1.65 | 42.0 | 220 | 15 | 870 | 60 | 2.36 | 60 | 0.981 |
| PH185-24 | -24 | 38 | 1.1/2 | 38.0 | 1.93 | 49.0 | 220 | 15 | 655 | 45 | 2.56 | 65 | 1.356 |
| PH185-28 | -28 | 44 | 1.3/4 | 45.0 | 2.20 | 56.0 | 145 | 10 | 435 | 30 | 3.54 | 90 | 1.420 |
| PH185-32 | -32 | 51 | 2 | 51.0 | 2.43 | 61.8 | 145 | 10 | 435 | 30 | 3.94 | 100 | 1.804 |
| PH185-40 | -40 | 63 | 2.1/2 | 64.0 | 3.01 | 76.5 | 75 | 5 | 290 | 20 | 5.51 | 140 | 2.255 |
| PH185-48 | -48 | 76 | 3 | 76.0 | 3.46 | 88.0 | 75 | 5 | 290 | 20 | 7.87 | 200 | 2.997 |
| PH185-56 | -56 | 89 | 3.1/2 | 89.0 | 4.05 | 103.0 | 75 | 5 | 290 | 20 | 9.06 | 230 | 3.262 |
| PH185-64 | -64 | 100 | 4 | 102.0 | 4.57 | 116.0 | 75 | 5 | 145 | 10 | 11.02 | 280 | 3.979 |
|
|
|
|
Temperature Range |
-40°C to 135°C |
*Smooth cover available only upto size 1″
