PH215/225 - 5000 PSI
Applicable Standard : PH215(WB) ISO 18752 – AC, PH215(WS) ISO 18752 – BC & CC, PH225 ISO 18752 – BC & CC

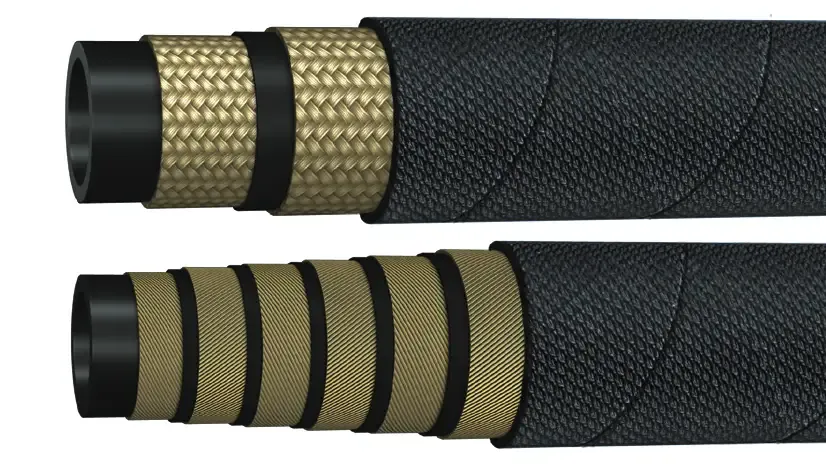

Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Double steel wire braids (DN06 – 12), Four high tensile steel wire spirals (DN10 – 31), Six high tensile steel wire spirals (DN38 – 51) |
|||
|
Cover |
Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. smooth *and wrap finish applicable only for wire braided hose |
|||
|
Application |
Constant pressure hydraulic Lines 350 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems |
|||
| Cover Options | Temperature Usage Options |
|---|---|
|
PH215: MSHA
|
PH415: -55°C to + 100°C (WB)
|
|
PH226: HARDX MSHA (WB)
|
|
|
PH466: ABRAZONX MSHA (WB)
|
PH435: -40°C to +135°C MSHA (WB)
|
|
PH426: HardX MSHA (WS)
|
|
|
PH486 : AbrazonX MSHA (WS)
|
PH455: -40°C to +153°C MSHA (WB)
|
Note : Sizes 3/8″ to 1/2″ available in both wire braid & wire spiral construction, WB: Wire Braid; WS: Wire Spiral
| Hose Structure |  ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |
| PH215-04 | -04 | 06 | 2WB | 1/4 | 6.7 | 0.52 | 13.2 | 5000 | 350 | 20000 | 1400 | 2.0 | 50 | 0.323 |
| PH215-05 | -05 | 08 | 2WB | 5/16 | 8.2 | 0.59 | 15.0 | 5000 | 350 | 20000 | 1400 | 2.2 | 55 | 0.366 |
| PH215-06 | -06 | 10 | 2WB | 3/8 | 9.8 | 0.67 | 17.1 | 5000 | 350 | 20000 | 1400 | 2.6 | 65 | 0.466 |
| PH225-06 | -06 | 10 | 4WS | 3/8 | 9.8 | 0.84 | 21.4 | 5000 | 350 | 20000 | 1400 | 3.5 | 90 | 0.822 |
| PH215-08 | -08 | 12 | 2WB | 1/2 | 13.1 | 0.82 | 20.6 | 5000 | 350 | 20000 | 1400 | 3.5 | 90 | 0.624 |
| PH225-08 | -08 | 12 | 4WS | 1/2 | 13.1 | 0.82 | 24.6 | 5000 | 350 | 20000 | 1400 | 4.5 | 115 | 0.994 |
| PH215-10 | -10 | 16 | 4WS | 5/8 | 16.2 | 1.06 | 27.0 | 5000 | 350 | 20000 | 1400 | 4.7 | 120 | 1.258 |
| PH215-12 | -12 | 19 | 4WS | 3/4 | 19.3 | 0.82 | 32.1 | 5000 | 350 | 20000 | 1400 | 9.4 | 240 | 1.814 |
| PH215-16 | -16 | 25 | 4WS | 1 | 25.9 | 1.52 | 38.7 | 5000 | 350 | 20000 | 1400 | 11.8 | 300 | 2.277 |
| PH215-20 | -20 | 31 | 4WS | 1.1/4 | 32.2 | 1.75 | 44.5 | 5000 | 350 | 20000 | 1400 | 18.1 | 460 | 2.671 |
| PH215-24 | -24 | 38 | 6WS | 1.1/2 | 38.7 | 2.26 | 57.3 | 5000 | 350 | 20000 | 1400 | 19.7 | 500 | 5.747 |
| PH215-32 | -32 | 51 | 6WS | 2 | 51.3 | 0.82 | 71.1 | 5000 | 350 | 20000 | 1400 | 24.8 | 630 | 7.852 |
|
|
|
|
Temperature Range |
WB -40°C to 100°C , WS -40°C to 120°C |
|
Intermittent |
120°C |
*Smooth cover available only upto size 1″
