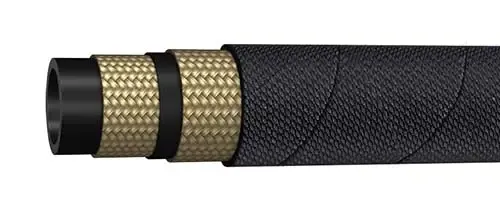

Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil & water |
|||
|
Reinforcement |
Double wire Braids |
|||
|
Cover |
Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish* |
|||
|
Application |
Hydraulic jacking system with petroleum and water based fluids. 10,000 PSI Static Pressure Only |
|||
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH215-04 | -04 | 06 | 1/4 | 6.4 | 0.52 | 13.2 | 10150 | 700 | 20300 | 1400 | 2.0 | 50 | 0.323 |
| PH215-06 | -06 | 10 | 3/8 | 9.5 | 0.69 | 17.4 | 10150 | 700 | 20300 | 1400 | 2.8 | 70 | 0.472 |
| PH215-08 | -08 | 12 | 1/2 | 13.0 | 0.86 | 21.8 | 10150 | 700 | 20300 | 1400 | 7.1 | 180 | 0.695 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
*Smooth cover available only upto size 1″
