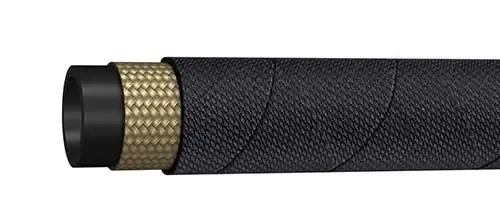

PH237 - 1SNX - HP HIGH TEMPERATURE MSHA
Applicable Standard : Exceeds EN 857
Construction
|
Inner tube |
Black Colour, Synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Single steel wire braid |
|||
|
Cover |
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish* |
|||
|
Application |
Medium Pressure Hydraulic Lines 110 to 290 bar requires compact outer dia and high flexibility for use with petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipment and machineries/systems |
|||
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH237-04 | -04 | 06 | 1/4 | 6.7 | 0.47 | 12.0 | 4205 | 290 | 16820 | 1160 | 1.6 | 40 | 0.186 |
| PH237-05 | -05 | 08 | 5/16 | 8.2 | 0.55 | 14.0 | 3625 | 250 | 14500 | 1000 | 2.2 | 55 | 0.235 |
| PH237-06 | -06 | 10 | 3/8 | 9.8 | 0.63 | 16.0 | 3335 | 230 | 13340 | 920 | 2.6 | 65 | 0.295 |
| PH237-08 | -08 | 12 | 1/2 | 13.1 | 0.75 | 19.0 | 2900 | 200 | 11600 | 800 | 3.1 | 80 | 0.377 |
| PH237-10 | -10 | 16 | 5/8 | 16.2 | 0.87 | 22.0 | 2175 | 150 | 8700 | 600 | 4.1 | 105 | 0.454 |
| PH237-12 | -12 | 19 | 3/4 | 19.3 | 1.02 | 26.0 | 1815 | 125 | 7250 | 500 | 4.7 | 120 | 0.582 |
| PH237-16 | -16 | 25 | 1 | 25.9 | 1.30 | 33.0 | 1595 | 110 | 6380 | 440 | 6.3 | 160 | 0.804 |
| PH237-20 | -20 | 31 | 1.1/4 | 32.0 | 1.73 | 44.0 | 1450 | 100 | 5800 | 400 | 11.8 | 300 | 1.516 |
|
|
|
|
Temperature Range |
-40°C to 135°C |
|
Impulse Cycles |
1,50,000 |
*Smooth cover available only upto size 1″
