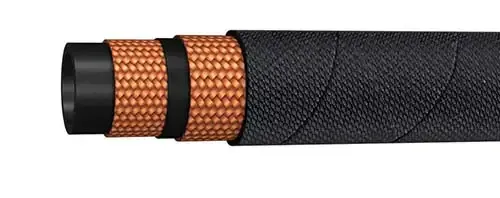

Construction
|
Inner tube |
Black CPE rubber, resistant to oil & water |
|||
|
Reinforcement |
Double Textile Braid |
|||
|
Cover |
Black CPE rubber, resistant to weather, oil & ozone. |
|||
|
Application |
Medium pressure and low impulse hydraulic lines 40 to 145 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipment and machineries/systems |
|||
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH239-04 | -04 | 06 | 1/4 | 6.6 | 0.57 | 14.4 | 2105 | 145 | 8410 | 580 | 1.8 | 45 | 0.207 |
| PH239-05 | -05 | 08 | 5/16 | 8.1 | 0.67 | 16.9 | 1885 | 130 | 7540 | 520 | 2.2 | 55 | 0.278 |
| PH239-06 | -06 | 10 | 3/8 | 9.7 | 0.73 | 18.5 | 1595 | 110 | 6380 | 440 | 2.8 | 70 | 0.321 |
| PH239-08 | -08 | 12 | 1/2 | 13.0 | 0.85 | 21.7 | 1380 | 95 | 5440 | 375 | 3.3 | 85 | 0.389 |
| PH239-10 | -10 | 16 | 5/8 | 16.1 | 1.02 | 25.9 | 1160 | 80 | 4640 | 320 | 4.1 | 105 | 0.528 |
| PH239-12 | -12 | 19 | 3/4 | 19.3 | 1.14 | 29.0 | 1015 | 70 | 4060 | 280 | 5.1 | 130 | 0.604 |
| PH239-16 | -16 | 25 | 1 | 25.8 | 1.41 | 35.9 | 800 | 55 | 3190 | 220 | 5.9 | 150 | 0.812 |
| PH239-20 | -20 | 31 | 1.1/4 | 32.3 | 1.67 | 42.3 | 655 | 45 | 2610 | 180 | 7.5 | 190 | 0.819 |
| PH239-24 | -24 | 38 | 1.1/2 | 38.6 | 1.95 | 49.6 | 580 | 40 | 2320 | 160 | 9.4 | 240 | 1.178 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 135°C Air not to exceed: 121°C |
*Smooth cover available only upto size 1″
