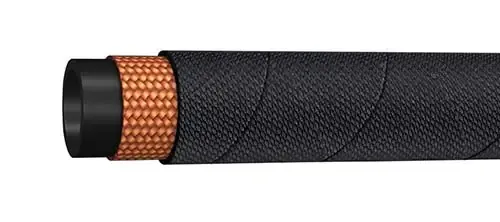

Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Single Textile Braid |
|||
|
Cover |
Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish* |
|||
|
Application |
Very low pressure hydraulic lines 15 to 25 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Stationary equipment and hydraulic systems |
|||
| Cover Options | Temperature Usage Options |
|---|---|
|
PH261 : MSHA
|
PH271 : High temperature MSHA cover -40°C to +135°C
|
Note : 3/4″ & 1″not covered under EN854
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH261-04 | -04 | 06 | 1/4 | 6.6 | 0.49 | 12.4 | 365 | 25 | 1450 | 100 | 1.8 | 45 | 0.131 |
| PH261-05 | -05 | 08 | 5/16 | 8.1 | 0.55 | 13.9 | 290 | 20 | 1160 | 80 | 2.6 | 65 | 0.150 |
| PH261-06 | -06 | 10 | 3/8 | 9.0 | 0.61 | 15.5 | 290 | 20 | 1160 | 80 | 3.0 | 75 | 0.181 |
| PH261-08 | -08 | 12 | 1/2 | 13.0 | 0.74 | 18.7 | 290 | 20 | 945 | 65 | 3.5 | 90 | 0.222 |
| PH261-10 | -10 | 16 | 5/8 | 16.1 | 0.90 | 22.9 | 290 | 20 | 945 | 65 | 4.5 | 115 | 0.327 |
| PH261-12 | -12 | 19 | 3/4 | 19.3 | 1.04 | 26.3 | 220 | 15 | 725 | 50 | 5.3 | 135 | 0.381 |
| PH261-16 | -16 | 25 | 1 | 25.8 | 1.34 | 34.0 | 220 | 15 | 725 | 50 | 5.9 | 150 | 0.643 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
*Smooth cover available only upto size 1″
