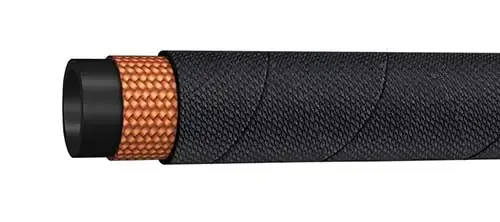

Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Single Textile braid |
|||
|
Cover |
Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish* |
|||
|
Application |
Very low pressure hydraulic lines 40 to 75 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Stationary equipment and hydraulic systems |
|||
| Cover Options | Temperature Usage Options |
|---|---|
|
PH262 : MSHA
|
PH272 : High temperature MSHA cover -40°C to +135°C
|
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH262-04 | 04 | 06 | 1/4 | 6.6 | 0.53 | 13.4 | 1090 | 75 | 4350 | 300 | 1.6 | 40 | 0.172 |
| PH262-05 | -05 | 08 | 5/16 | 8.1 | 0.59 | 14.9 | 1015 | 70 | 3990 | 275 | 2.0 | 50 | 0.199 |
| PH262-06 | -06 | 10 | 3/8 | 9.7 | 0.65 | 16.5 | 945 | 65 | 3700 | 255 | 2.4 | 60 | 0.230 |
| PH262-08 | -08 | 12 | 1/2 | 13.0 | 0.78 | 19.7 | 870 | 60 | 3410 | 235 | 2.8 | 70 | 0.298 |
| PH262-10 | -10 | 16 | 5/8 | 16.1 | 0.94 | 23.9 | 725 | 50 | 2900 | 200 | 3.5 | 90 | 0.409 |
| PH262-12 | -12 | 19 | 3/4 | 19.3 | 1.06 | 27.0 | 655 | 45 | 2610 | 180 | 4.3 | 110 | 0.494 |
| PH262-16 | -16 | 25 | 1 | 25.8 | 1.35 | 34.4 | 580 | 40 | 2320 | 160 | 5.9 | 150 | 0.694 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
*Smooth cover available only upto size 1″
