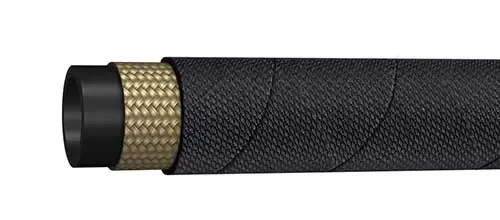

Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Single steel wire braid |
|||
|
Cover |
Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in Wrap and Smooth finish* |
|||
|
Application |
Medium Pressure hydraulic lines 105 bar and requires compact outer dia. For use with petroleum based fluids, water based fluids in Hydraulic systems. Suitable for Agricultural, Earth Moving & material handling equipment and machineries/systems |
|||
| Cover Options |
|---|
|
PH290 : MSHA
|
|
PH492 : HARDX MSHA
|
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH290-04 | -04 | 06 | 1/4 | 6.4 | 0.44 | 11.2 | 1525 | 105 | 6020 | 415 | 1.2 | 30 | 0.169 |
| PH290-05 | -05 | 08 | 5/16 | 8.0 | 0.50 | 12.8 | 1525 | 105 | 6020 | 415 | 1.4 | 35 | 0.193 |
| PH290-06 | -06 | 10 | 3/8 | 9.5 | 0.56 | 14.3 | 1525 | 105 | 6020 | 415 | 2.0 | 50 | 0.272 |
| PH290-08 | -08 | 12 | 1/2 | 12.7 | 0.69 | 17.4 | 1525 | 105 | 6020 | 415 | 2.4 | 60 | 0.294 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
|
Intermittent |
120°C |
*Smooth cover available only upto size 1″
