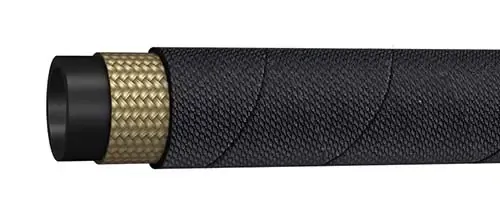

Construction
|
Inner tube |
Black Colour, Synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Single or Double steel wire braids |
|||
|
Cover |
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish* |
|||
|
Application |
Constant Pressure Hydraulic Lines 210 bar and requires half bend radius for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipment and machineries/systems |
|||
| Cover Options | Temperature Usage Options |
|---|---|
|
PH293 : MSHA
|
PH593 : High temperature MSHA cover -40°C to +135°C
|
|
PH198 : HARDX MSHA
|
PH594 : Ultra High temperature MSHA cover -40°C to +150°C
|
|
PH294 : ABRAZONX MSHA
|
|
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH293-04 | -04 | 06 | 1/4 | 6.6 | 0.50 | 12.8 | 3045 | 210 | 12180 | 840 | 2.0 | 50 | 0.218 |
| PH293-05 | -05 | 08 | 5/16 | 8.1 | 0.56 | 14.3 | 3045 | 210 | 12180 | 840 | 2.2 | 55 | 0.253 |
| PH293-06 | -06 | 10 | 3/8 | 9.7 | 0.64 | 16.3 | 3045 | 210 | 12180 | 840 | 2.6 | 65 | 0.303 |
| PH293-08 | -08 | 12 | 1/2 | 12.9 | 0.80 | 20.3 | 3045 | 210 | 12180 | 840 | 3.5 | 90 | 0.446 |
| PH293-10 | -10 | 16 | 5/8 | 16.1 | 0.93 | 23.5 | 3045 | 210 | 12180 | 840 | 3.9 | 100 | 0.736 |
| PH293-12 | -12 | 19 | 3/4 | 19.2 | 1.10 | 28.0 | 3045 | 210 | 12180 | 840 | 4.7 | 120 | 0.932 |
| PH293-16 | -16 | 25 | 1 | 25.7 | 1.48 | 37.5 | 3045 | 210 | 12180 | 840 | 5.9 | 150 | 1.614 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
|
Intermittent |
120°C |
|
Impulse Cycles |
200,000 cycles |
*Smooth cover available only upto size 1″
