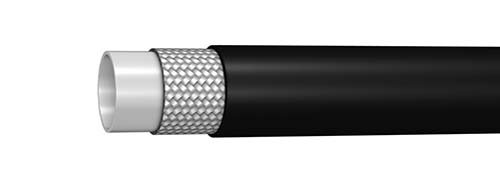

Construction
|
Inner tube |
Thermoplastic Elastomer |
|||
|
Reinforcement |
PH354 – Single braid of synthetic fiber PH355 – Single braid of Aramid fiber |
|||
|
Cover |
Polyurethane, Black Colour, Pin pricked upon request
|
|||
|
Application |
Very high pressure mini hydraulic lines 250 to 630 bar suitable for hydraulic application, with increased resistance to abrasion for use with pertroleum, synthetic or water based fluids in Hydraulic systems pressure test equipment and test points, general mini hydraulic equipment, Automotive roof and boot opening system and truck’s cab lifting systems |
|||
Note : Available with polyamide 12 as core and cover
| Item Code | DN |  ID |  OD |  WP |  BP |  BR/r |  W |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | ||
| PH354-3 | 3 | 1/8 | 3.0 | 0.256 | 6.5 | 3600 | 250 | 14400 | 1000 | 0.8 | 20 | 30 |
| PH355-2 | 2 | 5/64 | 2.0 | 0.197 | 5.0 | 9100 | 630 | 27300 | 1890 | 0.8 | 20 | 24 |
| PH355-3 | 3 | 1/8 | 3.0 | 0.236 | 6.0 | 9100 | 630 | 27300 | 1890 | 1.2 | 30 | 31 |
| PH355-4 | 4 | 5/32 | 4.0 | 0.315 | 8.0 | 9100 | 630 | 27300 | 1890 | 1.6 | 40 | 54 |
|
|
|
|
Temperature Range |
Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids |
