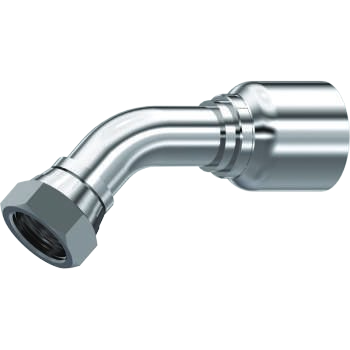

PF-43-FBSP45-SS-ONE PIECE BSP FEMALE 60º CONE (45º ELBOW) FITTING

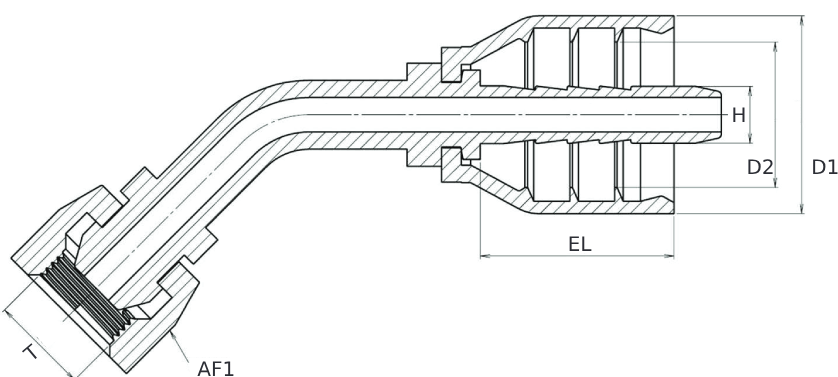

| POLYFIT PART.NO | H | T | AF1 | EL | D1 | D2 | PARKER PART.NO | DICSA PART.NO | OMEGA PART.NO |
|---|---|---|---|---|---|---|---|---|---|
| PF43-04-04-FBSP45-SS | 1/4" | 1/4" -19h BSP | 19 | 22.5 | 23 | 16.9 | 1B143-04-04 | 881080404 | H-43-FBSP-45-04-04 |
| PF43-06-06-FBSP45-SS | 3/8" | 3/8" -19h BSP | 22 | 24.5 | 28 | 20.7 | 1B143-06-06 | 881080606 | H-43-FBSP-45-06-06 |
| PF43-08-08-FBSP45-SS | 1/2" | 1/2" -14h BSP | 27 | 26.7 | 32 | 24.8 | 1B143-08-08 | 881080808 | H-43-FBSP-45-08-08 |
| PF43-12-12-FBSP45-SS | 3/4" | 3/4" -14h BSP | 32 | 35.5 | 40 | 32 | 1B143-12-12 | 881081212 | H-43-FBSP-45-12-12 |
| PF43-16-16-FBSP45-SS | 1" | 1" -11h BSP | 41 | 42 | 47 | 39 | 1B143-16-16 | 881081616 | H-43-FBSP-45-16-16 |
Note:
- Additional sizes available on request.
- This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
- General tolerance is applicable.
