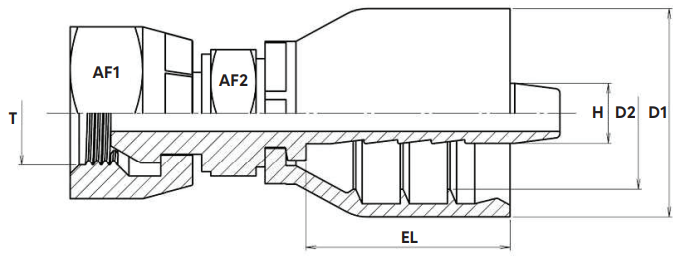

PF-43-FP-SS-ONE PIECE DOUBLE HEXAGONAL NPSM FEMALE SWIVEL STRAIGHT FITTING
| POLYFIT PART.NO | H | T | AF1 | AF2 | EL | D1 | D2 | PARKER PART.NO | DICSA PART.NO | OMEGA PART.NO |
|---|---|---|---|---|---|---|---|---|---|---|
| PF43-04-04-FP-SS | 1/4" | 1/4" -18h NPSM | 19 | 14 | 22.5 | 23 | 16.9 | 10143-04-04 | 883610404 | H-43-FPX-04-04 |
| PF43-06-06-FP-SS | 3/8" | 3/8" -18h NPSM | 22 | 17 | 24.5 | 28 | 20.7 | 10143-04-06 | 883610606 | H-43-FPX-06-06 |
| PF43-08-08-FP-SS | 1/2" | 1/2" -14h NPSM | 27 | 19 | 26.7 | 32 | 24.8 | 10143-06-06 | 883610808 | H-43-FPX-08-08 |
| PF43-12-12-FP-SS | 3/4" | 3/4" -14h NPSM | 32 | 27 | 35.5 | 40 | 32 | 10143-06-08 | 883611212 | H-43-FPX-12-12 |
| PF43-16-16-FP-SS | 1" | 1" -11.5h NPSM | 41 | 32 | 42 | 47 | 39 | 10143-08-08 | 883611616 | H-43-FPX-16-16 |
Note:
- Additional sizes available on request.
- This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
- General tolerance is applicable.
