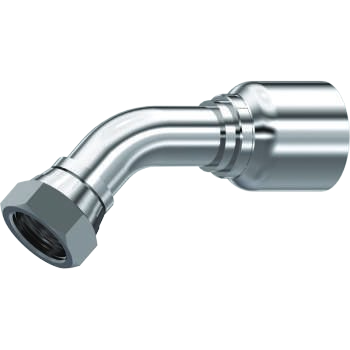

PF-43-FP45-SS-ONE PIECE NPSM FEMALE SWIVEL 60º CONE (45º ELBOW) FITTING
| POLYFIT PART.NO | H | T | AF1 | EL | D1 | D2 | PARKER PART.NO | DICSA PART.NO | OMEGA PART.NO |
|---|---|---|---|---|---|---|---|---|---|
| PF43-04-04-FP45-SS | 1/4" | 1/4" -18h NPSM | 19 | 22.5 | 23 | 16.9 | - | 882630404 | H-43-FPX-45-04-04 |
| PF43-06-06-FP45-SS | 3/8" | 3/8" -18h NPSM | 22 | 24.5 | 28 | 20.7 | - | 882630606 | H-43-FPX-45-06-06 |
| PF43-08-08-FP45-SS | 1/2" | 1/2" -14h NPSM | 27 | 26.7 | 32 | 24.8 | - | 882630808 | H-43-FPX-45-08-08 |
| PF43-12-12-FP45-SS | 3/4" | 3/4" -14h NPSM | 32 | 35.5 | 40 | 32 | - | 882631212 | H-43-FPX-45-12-12 |
| PF43-16-16-FP45-SS | 1" | 1" -11.5h NPSM | 41 | 42 | 47 | 39 | - | 882631616 | H-43-FPX-45-16-16 |
Note:
- Additional sizes available on request.
- This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
- General tolerance is applicable.
