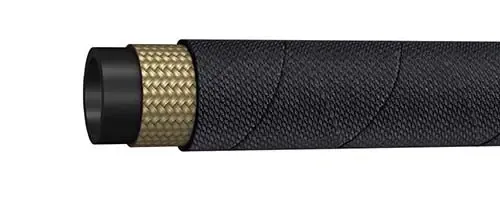

PH208 - 1ST HARD - X MSHA
Applicable Standard : EN 853 – 1ST
Construction
|
Inner tube |
Black Color, Synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Single steel wire braid |
|||
|
Cover |
Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish* |
|||
|
Application |
Medium Pressure Hydraulic Lines 35 to 40 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipment and machineries/systems |
|||
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH208-32 | -32 | 51 | 2 | 51 | 2.64 | 67.0 | 580 | 40 | 2320 | 160 | 24.8 | 630 | 2.801 |
| PH208-48 | -48 | 76 | 3 | 76 | 3.62 | 92.0 | 510 | 35 | 2030 | 140 | 35.4 | 900 | 3.936 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
|
Intermittent |
120°C |
*Smooth cover available only upto size 1″
