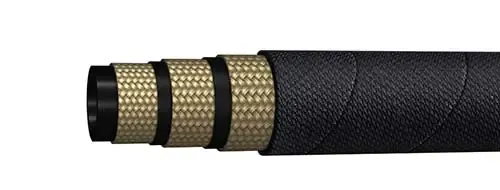

Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil |
|||
|
Reinforcement |
Three high tensile steel braids |
|||
|
Cover |
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish* |
|||
|
Application |
High pressure for forest industry. Compatible with mineral, vegetable oils, glycol, polyglycol based, synthetic ester based oils, oils in water emulsion |
|||
| Cover Options |
|---|
|
PH276: MSHA
|
 ID |  RI OD |  OD |  WP |  BP |  BR/r |  W |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH276-06 | -06 | 10 | 3/8 | 9.5 | 0.70 | 17.7 | 0.84 | 21.3 | 7250 | 500 | 29000 | 2000 | 7.09 | 180 | 0.832 |
| PH276-08 | -08 | 12 | 1/2 | 12.7 | 0.81 | 20.5 | 0.96 | 24.3 | 6815 | 470 | 27260 | 1880 | 9.06 | 230 | 1.017 |
| PH276-10 | -10 | 16 | 5/8 | 16.0 | 0.96 | 24.4 | 1.10 | 28.0 | 5945 | 410 | 23780 | 1640 | 9.84 | 250 | 1.199 |
| PH276-12 | -12 | 19 | 3/4 | 19.0 | 1.09 | 27.8 | 1.24 | 31.5 | 5440 | 375 | 21750 | 1500 | 11.81 | 300 | 1.457 |
| PH276-16 | -16 | 25 | 1 | 25.4 | 1.37 | 34.7 | 1.52 | 38.7 | 4570 | 315 | 18270 | 1260 | 13.39 | 340 | 1.902 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
|
Intermittent |
120°C |
*Smooth cover available only upto size 1″
