PH295 - R19
Applicable Standard : SAE J517 – 100R19

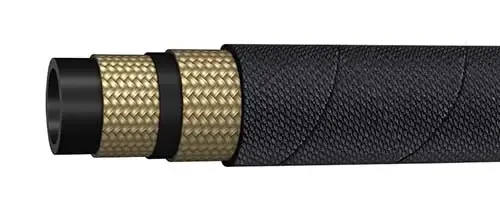

Construction
|
Inner tube |
Black colour, synthetic rubber resistant to oil and water |
|||
|
Reinforcement |
Single or Double steel wire braids |
|||
|
Cover |
Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. |
|||
|
Application |
Compact constant pressure hydraulic lines 280 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & Material handling equipments / systems |
|||
| Cover Options |
|---|
|
PH295 : MSHA
|
|
PH229 : HARDX MSHA
|
|
PH222 : ABRAZONX MSHA
|
 ID |  OD |  WP |  BP |  BR/r |  W |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Dash Size | DN | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m |
| PH295-04 | -04 | 06 | 1/4 | 6.7 | 0.47 | 12.0 | 4060 | 280 | 16240 | 1120 | 2.0 | 50 | 0.186 |
| PH295-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 14.9 | 4060 | 280 | 16240 | 1120 | 2.2 | 55 | 0.366 |
| PH295-06 | -06 | 10 | 3/8 | 9.8 | 0.67 | 17.1 | 4060 | 280 | 16240 | 1120 | 2.6 | 65 | 0.466 |
| PH295-08 | -08 | 12 | 1/2 | 13.1 | 0.80 | 20.4 | 4060 | 280 | 16240 | 1120 | 3.5 | 90 | 0.624 |
| PH295-10 | -10 | 16 | 5/8 | 16.2 | 0.94 | 24.0 | 4060 | 280 | 16240 | 1120 | 3.9 | 100 | 0.745 |
| PH295-12 | -12 | 19 | 3/4 | 19.3 | 1.09 | 27.7 | 4060 | 280 | 16240 | 1120 | 4.7 | 120 | 0.901 |
| PH295-16 | -16 | 25 | 1 | 25.7 | 1.40 | 35.8 | 4060 | 280 | 16240 | 1120 | 5.9 | 150 | 1.603 |
| PH295-16 | -16 | 25 | 1 | 25.7 | 1.40 | 35.8 | 4060 | 280 | 16240 | 1120 | 5.9 | 150 | 1.603 |
|
|
|
|
Temperature Range |
Continuous: -40°C to 100°C |
|
Intermittent |
120°C |
|
Impulse Cycles |
200,000 cycles |
